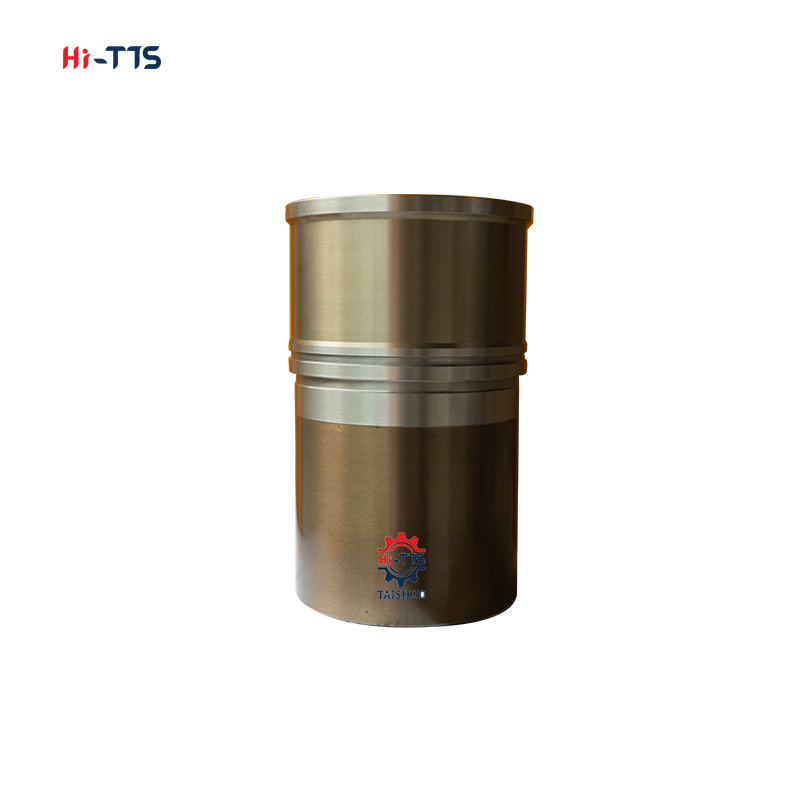

Engine Liner Cylinder C10 C11 C12 1482125 469-5314 148-2125
Product Description:
Cylinder liner in engine
A cylinder liner is a cylindrical part to be fitted into an engine block to form a cylinder. It is one of the most important functional parts to make up the interior of an engine. This is called Cylinder liner in Japan, but some countries(or companies) call this Cylinder sleeve.
How does a cylinder liner work?
A cylinder liner provides a smooth sliding surface that allows the reciprocating motion of a piston. The friction resistance offered by the inner walls of the liner is negligible; this allows the piston rings to slide over the inner walls of the liner.
Features:
Why use cylinder liner?
The cylinder liner prevents compressed gas and combustion gas from escaping. All that is needed is a cylinder liner that is difficult to replace with the high pressure and high temperature in the cylinder.
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
Technical Parameters:
| Model | C10 C11 C12 |
| Product Name | Cylinder Liner Cylinder Sleeve |
| Part number | 1482125 469-5314 148-2125 |
| Material | Iron |
| Weight | 7 kg |
| Diameter | 125mm |
| Size | 125*151*247mm |
| Application: | excavator E345B wheel loader 966G 140H buildozer D7R |
Applications:
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
How do you know if your cylinder liner is bad?
Check the cylinder liner for cracks, freeting or scoring. If any crack, fretting or scoring is detected, the cylinder must be replaced with a new one. If this is not the case, continue looking for cavitation erosion on the liner. Erosion results from poor cooling system maintenance.
Photos:
More products:
| MODEL | PART NO. | SIZE:(in'out'total) |
| 4D92 | 6140-21-2211 | |
| 4D94 | 6144-21-2211 | |
| 4D95 | 6207-21-2110 | Φ94.2*Φ98*180 |
| S4D95 | 6207-21-2121 | Φ94.2*Φ98*180 |
| 6D95 | 6207-21-2110 | Φ95*Φ98*180 |
| 6D102 | 6736-29-2140 | Φ102*Φ105*200 |
| S4D105 | 6130-22-2213 | Φ105*Φ127*228 |
| S6D105 | 6136-21-2210 | Φ105*Φ127*223 |
| S6D110 | 6138-21-2210 | |
| 6D107 | | Φ106*Φ110*203 |
| S6D108.F | 6222-21-2210 | 108*111.3*219.5 |
| 4D120 | 6110-21-2212 | |
| 4D130 | 6115-21-2211 | |
| S6D110 | 6138-21-2210 | Φ110*Φ115*225 |
| S6D125 | 6150-21-2221 | Φ125*Φ153*256 |
| S6D140 | 6211-21-2210 | |
| S6D155 | 6128-21-2215 | Φ155*Φ184*327 |
| S6D170 | 6162-23-2210 | |
| D6D | | Φ97*Φ101*104.8 |
| D6D+ | | Φ97*Φ102*104.8 |
| D6D.F | | Φ98*Φ101*104.8 |
| D6E | | Φ97*Φ101*188 |
| D6E+ | | Φ97*Φ102*188 |
| D6E,F | | Φ98*Φ101*188 |
